  • LES HUNTER'S OSCA CAR




    MK II Escort OSCA class car
    This car was originally built in the late 1980’s and raced at Ruapuna, Timaru and Wigram until February 2001. After 11 years sitting around the car is now being resurrected to be raced again, basically as it was previously.

    BODY

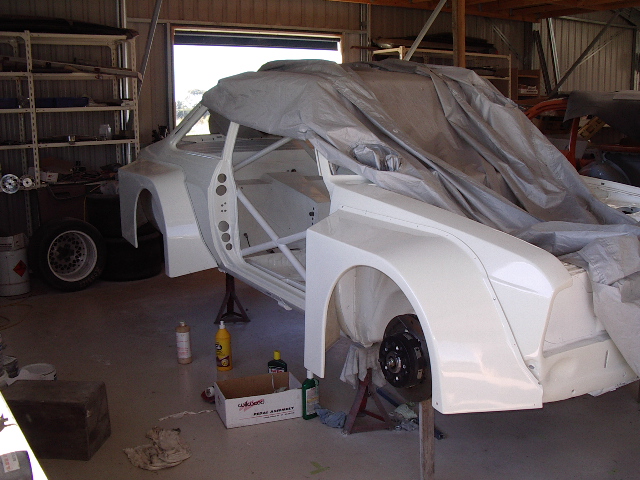

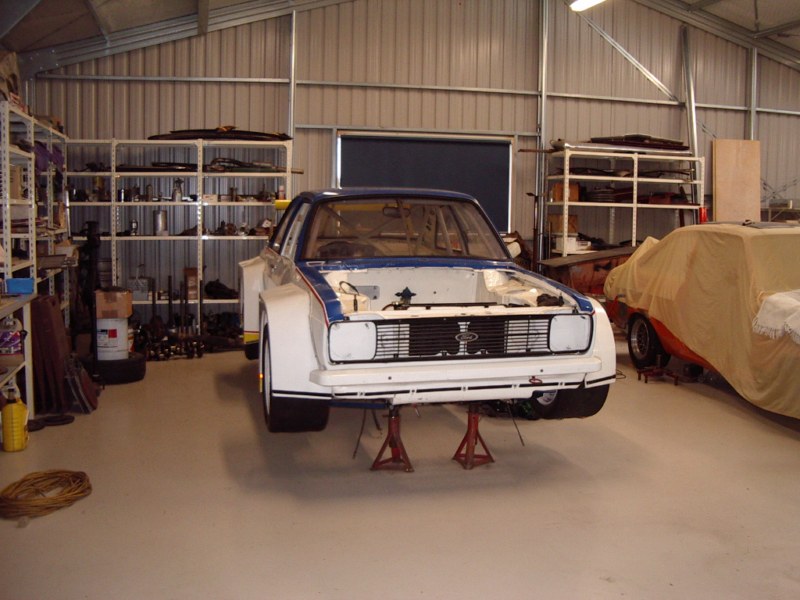

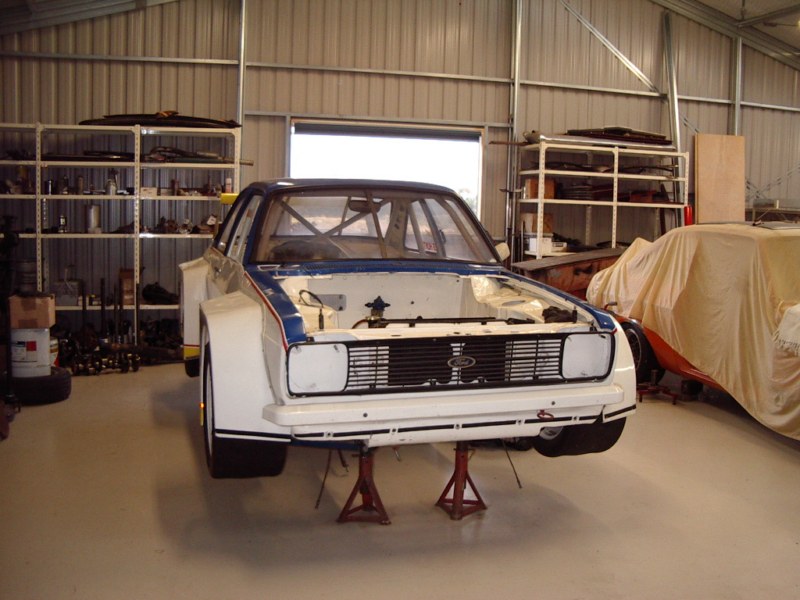

    MK II Escort 1980 fully body car with fabricated fibreglass flares added both front and rear to comply with OSCA rules. Chassis behind seat has been modified and rear guards have been tubbed.

    ENGINE

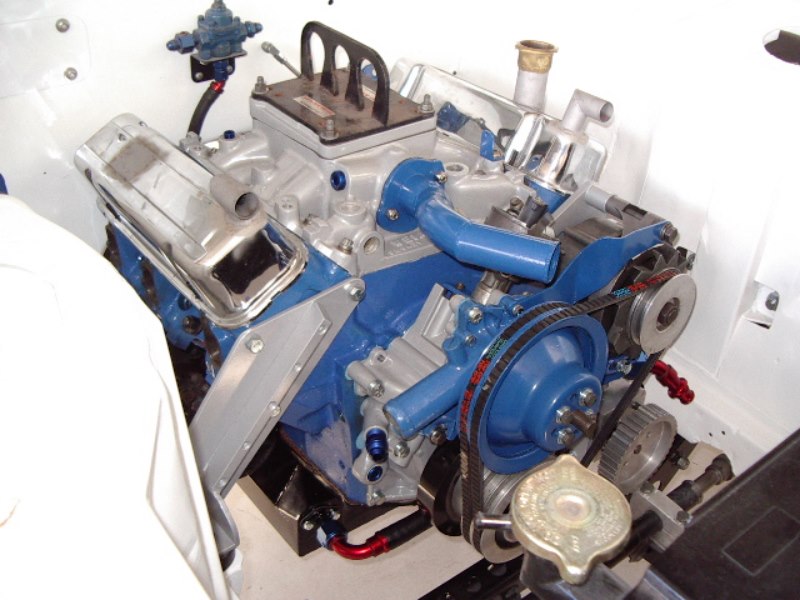

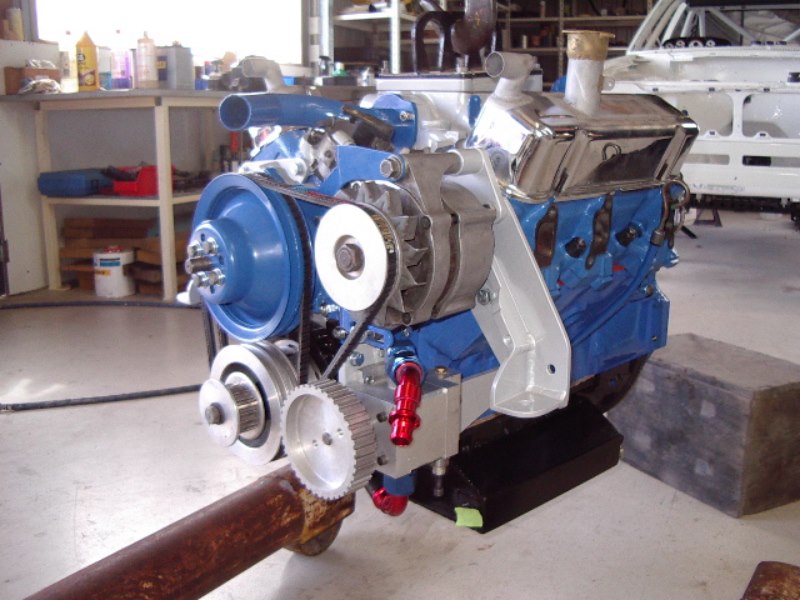

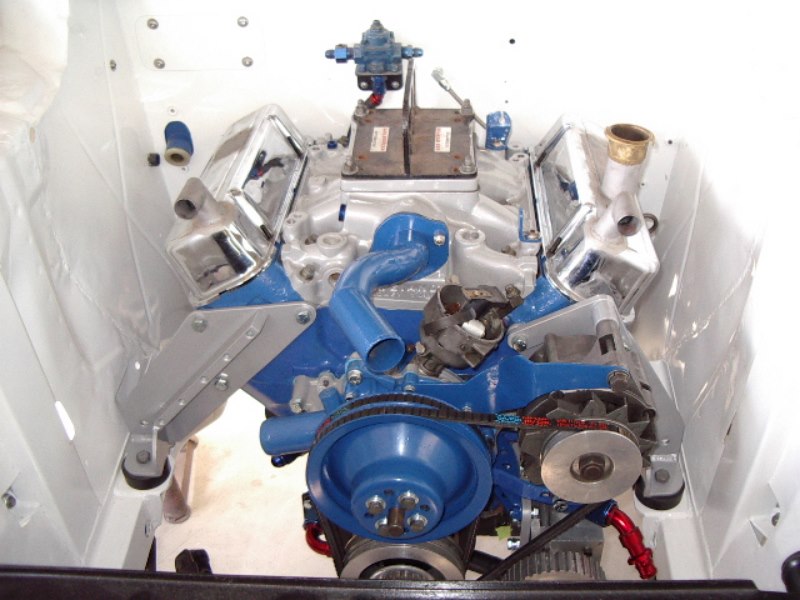

    This is a 3.8 litre Buick V6 about 1980, stock crank, stock rods, polished and shot peened, forged pistons, 11.3:1 compression ratio. Modified factory cast iron heads with larger valves, roller rockers, Weiand Smokey Yunick intake manifold, 4 barrel 550 cfm vacuum secondary Holley carb. Purpose built steel flywheel with 10.5” heavy duty single diaphram clutch. Approx horsepower 280.

    GEARBOX
    4 speed Muncie close ratio, basically stock with a Hurst shifter.

    SUSPENSION

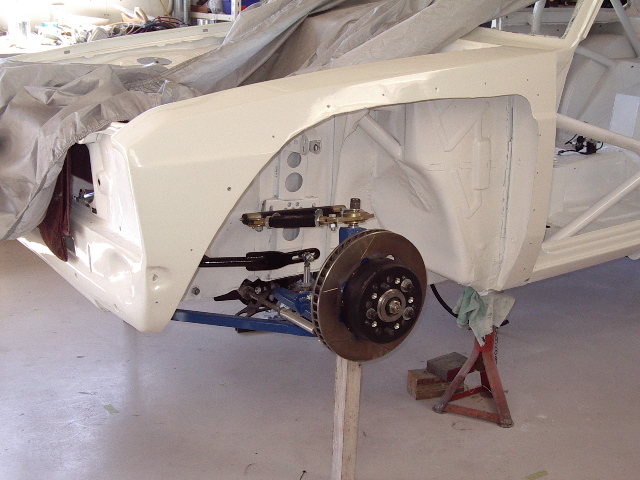

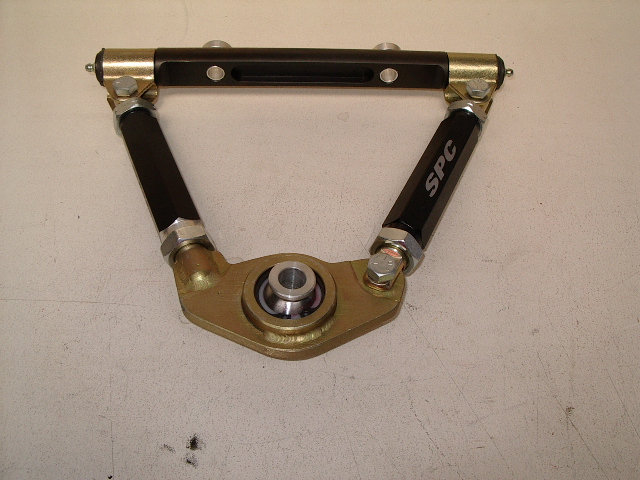

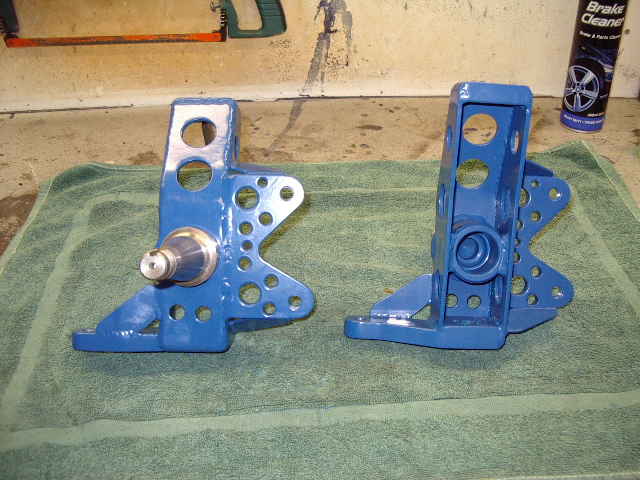

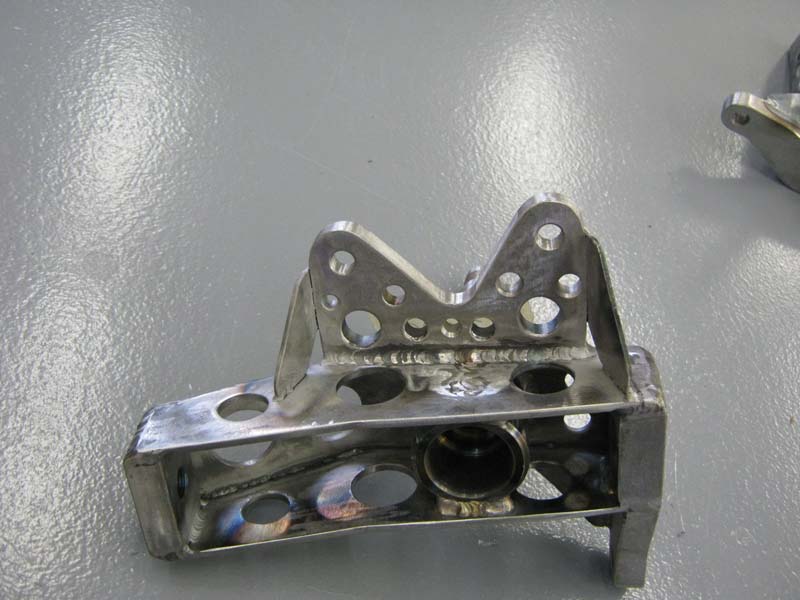

    Front - Les Hunter designed front suspension, double “A” arm with Les Hunter fabricated uprights/spindles. Coil over shocks and adjustable front sway bar.

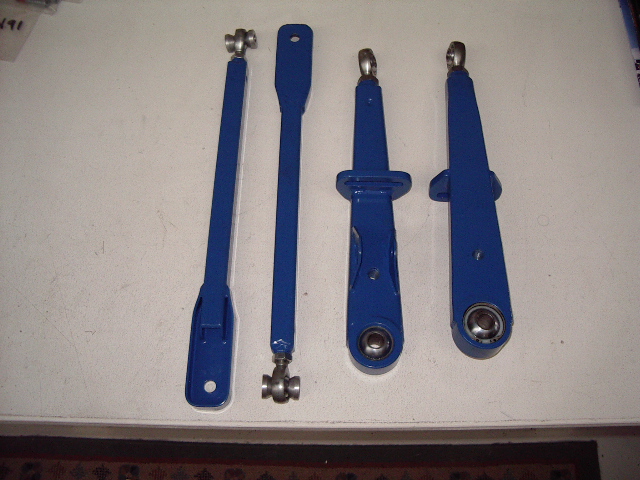

    Rear – Les Hunter built 3 link system and pan hard rod fully adjustable with coil overs and adjustable rear sway bar.

    DIFF
    Ford 8” with full floating hubs, 3.5:1 ratio with a Ford plate type LSD.

    BRAKES
    Front – 310 x 32 mm heavy duty Wilwood curved vane rotors, aluminium hats, purpose built hubs, Wilwood Superlite 4 pot calipers, Performance Friction Carbon Metallic 03 front pads.

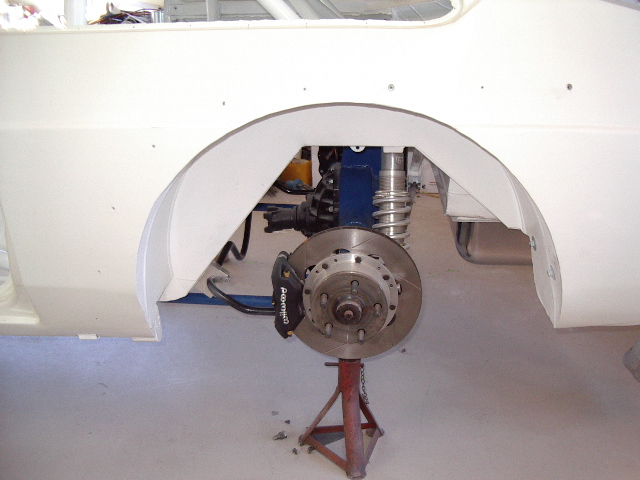

    Rear – 298 x 20.6 mm vented rotors, aluminium hats, on to full floating hubs, Wilwood Dynalite 4 pot calipers and Performance Friction Carbon Metallic 97 compound rear pads.

    PEDAL ASSEMBLY

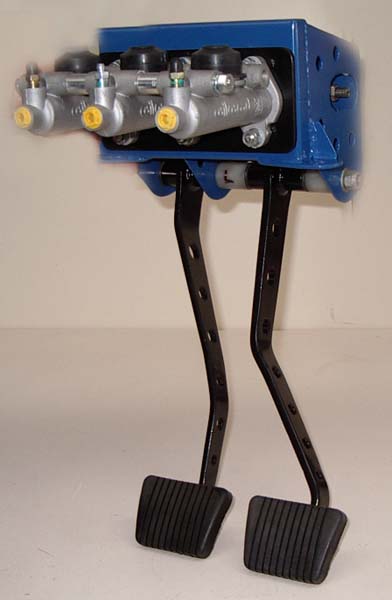

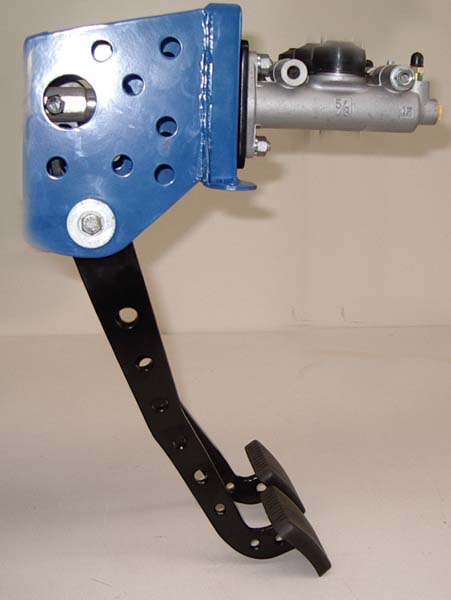

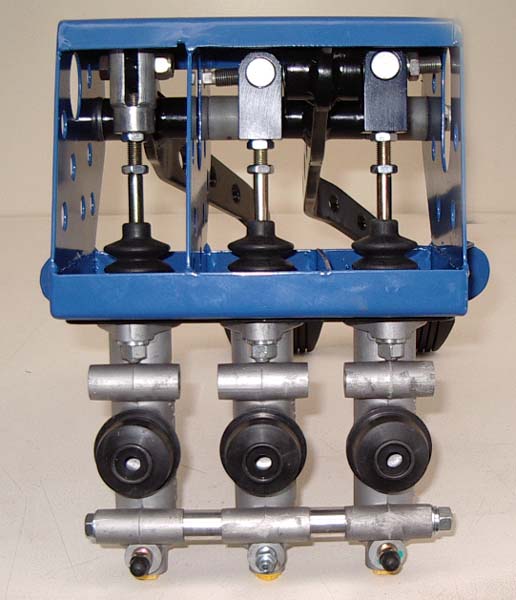

    Les Hunter fabricated in-house with Wilwood balance bar and Wilwood combination master cylinders – remote reservoirs.

    WHEELS
    3 piece modular – Fronts 15 x 10”: Rears 15 x 11.5” – steel sections with aluminium centres.

    TIRES
    Currently running Hoosier cross-plys.

    PERFORMANCE
    The car has done a best time at Ruapuna of 1.34.2 and Timaru at 1.11.1. As the engine has not been modified since it was last run we are hoping to replicate the above lap times with possibly more performance from fine tuning of the handling.



  •
